AC12025

AC Fan

AC12025

, 120x120x25mm

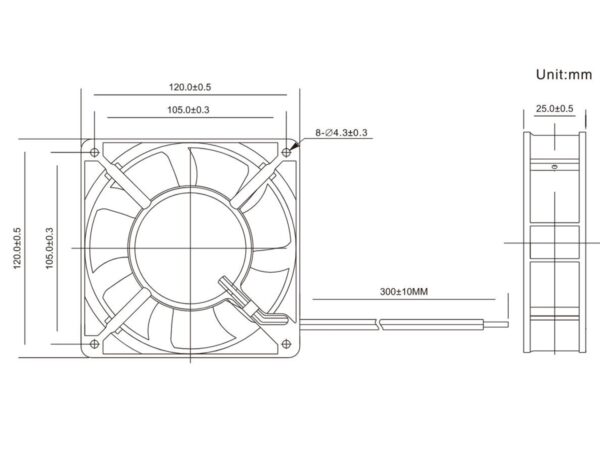

Dimensions Drawing

INQUIRY NOW

Technical Parameters

Listed Model	Bearing System	Rated Voltage	Freq.	Current	Input	Speed	Air Flow		Static Pressure		Noise	Weight
Listed Model	Bearing System	VAC	Hz	A	Watt	RPM	CFM	m³/min	mmH₂O	inchH₂O	dBA	g
X12025A1HB	Ball	110	50/60	0.15	16.5	2700	66.1	1.87	3.56	0.14	38	372
X12025A2HB	Ball	220	50/60	0.09	19.8	2700	66.1	1.87	3.56	0.14	38	372
X12025A3HB	Ball	380	50/60	0.04	15.2	2700	66.1	1.87	3.56	0.14	38	372

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
