AC15050

AC Fan

AC15050
, 150x150x50mm

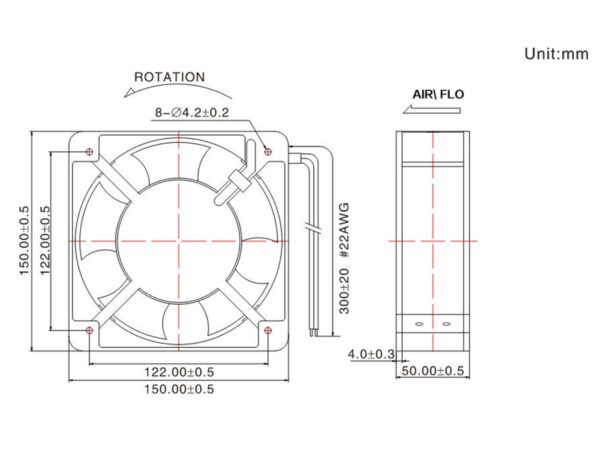

Dimensions Drawing
Technical Parameters
Listed ModelBearing SystemRated VoltageFreq.CurrentSpeedAir FlowStatic PressureNoiseWeight
VACHzARPMm³/minCFMmmH₂OinchH₂OdBAg
X1550A1HSSleeve11050/600.40/0.342600/28004.60/5.13175/19513.5/15.80.53/0.6248/52920
X1550A1HBBall11050/600.40/0.342600/28004.60/5.13175/19513.5/15.80.53/0.6248/52920
X1550A2HSSleeve22050/600.23/0.272600/28004.60/5.13175/19513.5/15.80.53/0.6248/52920
X1550A2HBBall22050/600.23/0.272600/28004.60/5.13175/19513.5/15.80.53/0.6248/52920

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
