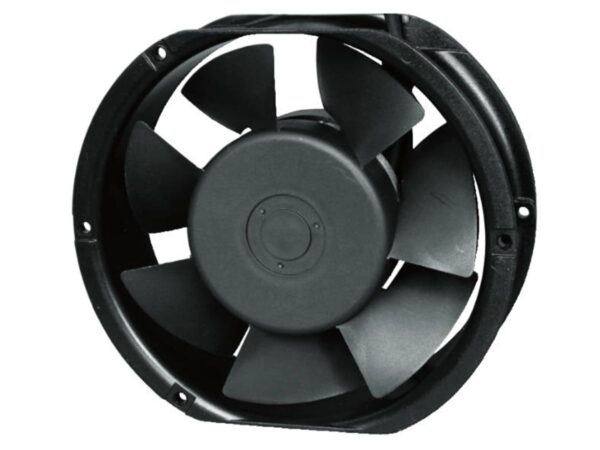

AC17251 A02

AC Fan

AC17251 A02

, 172x150x51mm

Dimensions Drawing

INQUIRY NOW

Technical Parameters

Listed Model	Bearing System	Rated Voltage	Freq.	Current	Input Watt	Speed	Air Flow		Static Pressure		Noise	Weight
Listed Model	Bearing System	VAC	Hz	A	Watt	RPM	CFM	m³/min	mmH₂O	InchH₂O	dBA	g
X17251A1HS	Sleeve	110	50/60	0.63/0.53	42/47	2400/2700	185/220	5.2/6.2	11.1/9.6	0.43/0.37	51/56	920
X17251A1HB	Ball	110	50/60	0.63/0.53	42/47	2500/2850	200/225	5.6/6.3	11.5/9.8	0.44/0.38	52/56	920
X17251A2HS	Sleeve	220	50/60	0.25/0.22	36/34	2400/2400	185/185	5.2/5.2	11.1/9.0	0.43/0.34	51/51	920
X17251A2HB	Ball	220	50/60	0.25/0.22	36/34	2500/2500	200/200	5.6/5.6	11.5/9.3	0.44/0.36	52/52	920
X17251A3HS	Sleeve	380	50/60	0.14/0.13	34/33	2500/2450	200/190	5.6/5.5	11.5/9.2	0.44/0.35	52/51	920
X17251A3HB	Ball	380	50/60	0.14/0.13	34/33	2500/2450	200/190	5.6/5.5	11.5/9.2	0.44/0.35	52/51	920

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
