AC17251A01

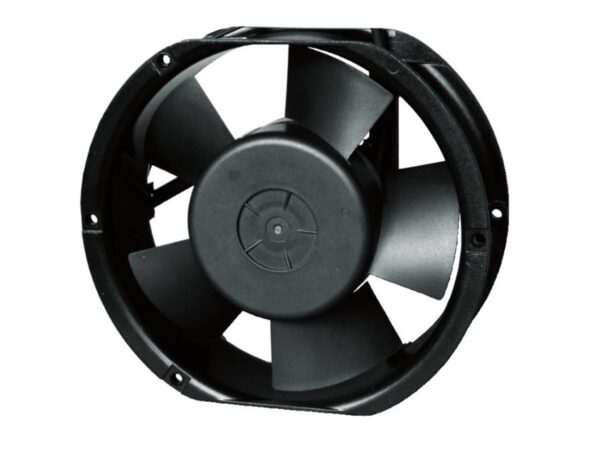

AC Fan

AC17251 A01

, 172x150x51mm

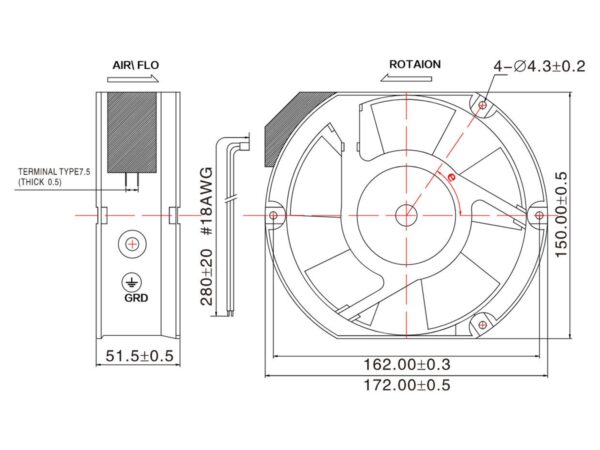

Dimensions Drawing

INQUIRY NOW

Technical Parameters

Listed Model	Bearing System	Rated Voltage	Freq.	Current	Input Watt	Speed	Air Flow		Static Pressure		Noise	Weight
Listed Model	Bearing System	VAC	Hz	A	Watt	RPM	CFM	m³/min	mmH₂O	InchH₂O	dBA	g
X17251A1HS	Sleeve	110	50/60	0.63/0.53	42/43	2500/2800	180/210	5.1/5.9	11.1/9.6	0.43/0.37	51/56	920
X17251A1HB	Ball	110	50/60	0.63/0.53	42/43	2600/2950	200/210	5.6/5.9	11.5/9.8	0.44/0.38	52/56	920
X17251A2HS	Sleeve	220	50/60	0.25/0.22	36/34	2500/2500	185/185	5.2/5.2	11.1/9.0	0.43/0.34	51/51	920
X17251A2HB	Ball	220	50/60	0.25/0.22	36/34	2600/2600	200/200	5.6/5.9	11.5/9.3	0.44/0.36	52/52	920
X17251A3HS	Sleeve	380	50/60	0.14/0.13	34/33	2600/2550	200/190	5.6/5.4	11.5/9.2	0.44/0.35	52/51	920
X17251A3HB	Ball	380	50/60	0.14/0.13	34/33	2600/2550	200/190	5.6/5.4	11.5/9.2	0.44/0.35	52/51	920

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
