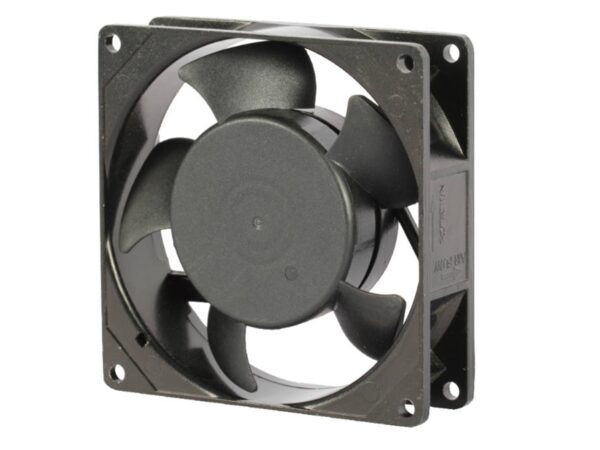

AC9225

AC Fan

AC9225

, 92x92x25mm

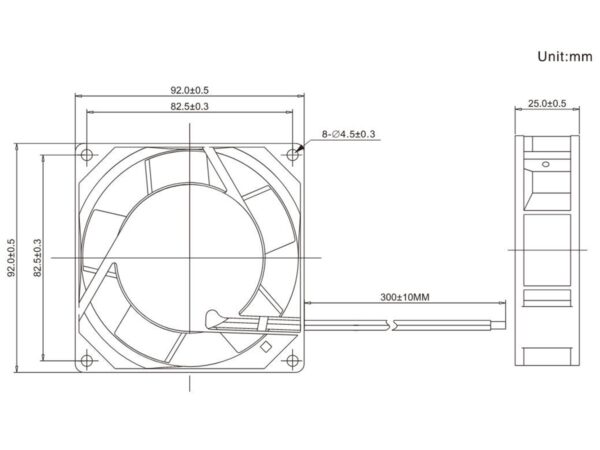

Dimensions Drawing

INQUIRY NOW

Technical Parameters

Listed Model	Bearing System	Rated Voltage	Freq.	Current	Input	Speed	Air Flow		Static Pressure		Noise	Weight
Listed Model	Bearing System	VAC	Hz	A	Watt	RPM	CFM	m³/min	mmH₂O	inchH₂O	dBA	g
X9225A1HB	Ball	110	50/60	0.15	16.5	2500	24	0.67	4.5	0.18	33	272
X9225A2HB	Ball	220	50/60	0.08	17.6	2500	24	0.67	4.5	0.18	33	272
X9225A3HB	Ball	380	50/60	0.04	15.2	2500	24	0.67	4.5	0.18	33	272

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
