Brushless DC Centrifugal Fan 175

Brushless DC Backward-Curved Centrifugal Fan

Brushless DC Centrifugal Fan 175

, Φ175x69mm

Dimensions Drawing

INQUIRY NOW

General Specification

Bearing System Configuration: Ball bearings or oil-impregnated bearings (customizable according to customers’ requirements).
Materials of the Impeller and Mounting Base: High-temperature-resistant PA engineering plastics / ADC12 die – casting.
Main Insulation Class: Class B.
Insulation Resistance: 10M / 500VDC.
Withstand Voltage Strength: 2 minutes / 500AVC – 5mA.
Applicable Ambient Temperature Range: RH20% – RH75%.
Storage Temperature: -20°C to +75°C.
Operating Ambient Temperature: -10°C to +70°C.
Expected Maximum Service Life of the Product: 50,000 hours.

Technical Parameters

Rated voltage	Speed specification	Rated current	Rated Power	Speed	Air Flow		Static Pressure	Noise
(VDC)	Speed specification	A	W	RPM	M³/hr	CFM	mm-H₂O	dBA
24	L	0.76	18.24	2300	451.93	266.00	21.00	60
24	M	1.35	32.40	2950	565.77	333.00	32.00	67
24	H	2.30	55.20	3500	686.40	404.00	49.00	71

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.

Recommend

Brushless DC Backward-Curved Centrifugal Fan

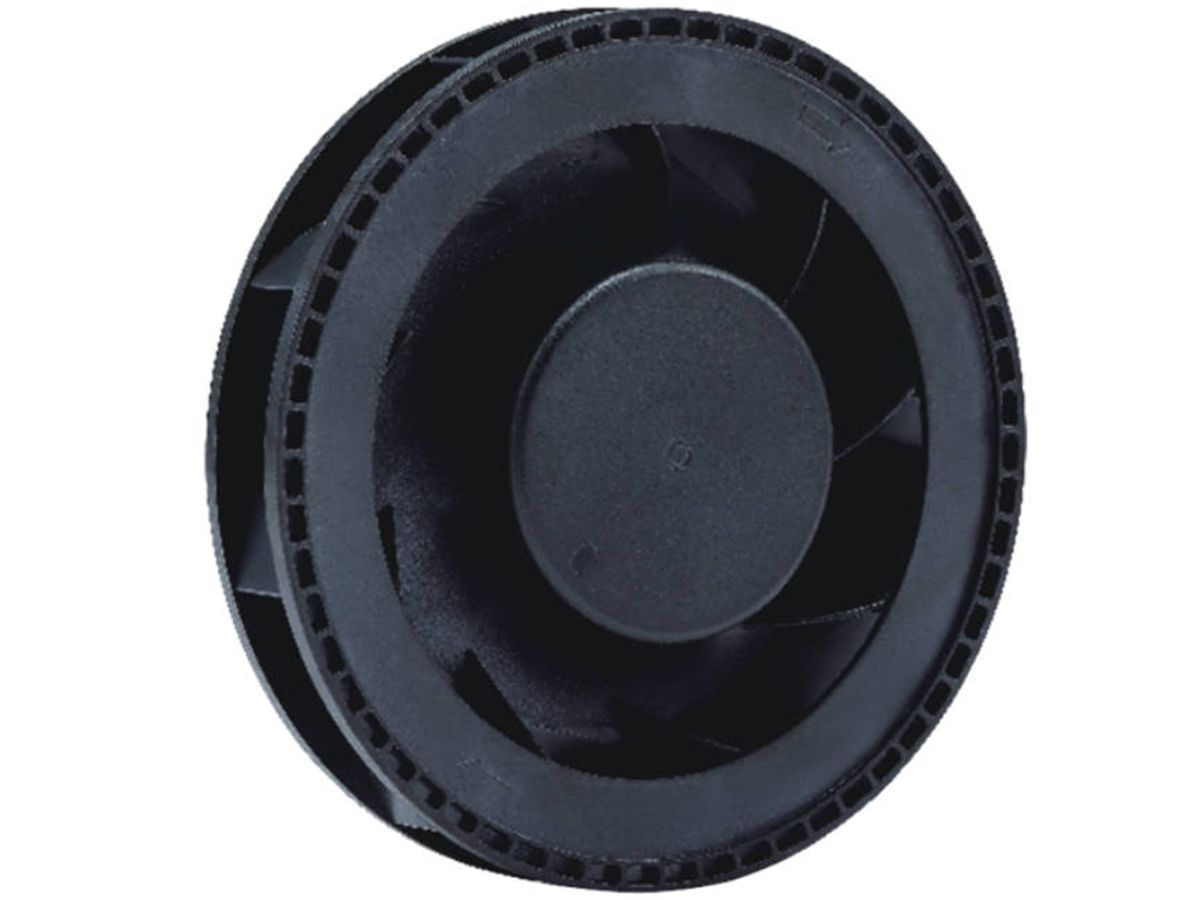

Model: Brushless DC Centrifugal Fan 10025
