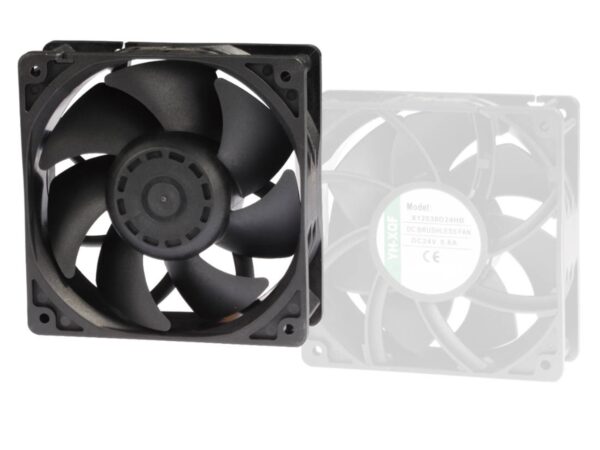

12038 A01
DC Fan
12038 A01
, 120x120x38mm

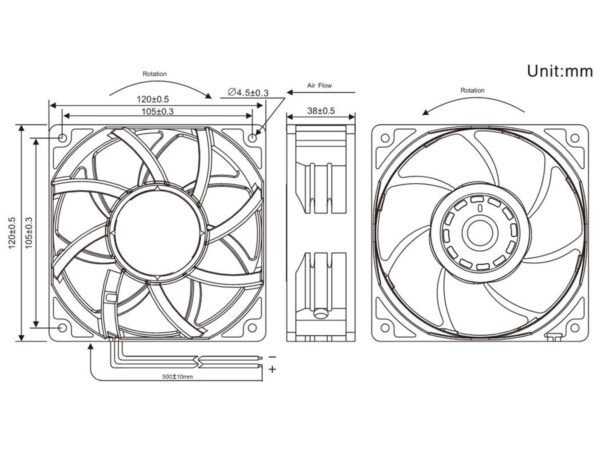

Dimensions Drawing
Request a Cooling Fan Quote
General Specification
Frame: Thermal Plastic, UL 94V-0
Impeller: ThermalPlastic, UL 94V-0
Lead Wires: UL Type （+） Red，（-）Black
Operation Temperature: -10℃~70℃, 35%~85%RH
Storage Temperature: -40℃~80℃, 35%~85%RH
Motor Protection: Impedance Protected, Reverse Polarity Protected
Function Description
Working Principle
Advantages
Function Description
Working Principle
Advantages
Function Description
Working Principle
Advantages
Function Description
Rating Criteria
Functions and Advantages

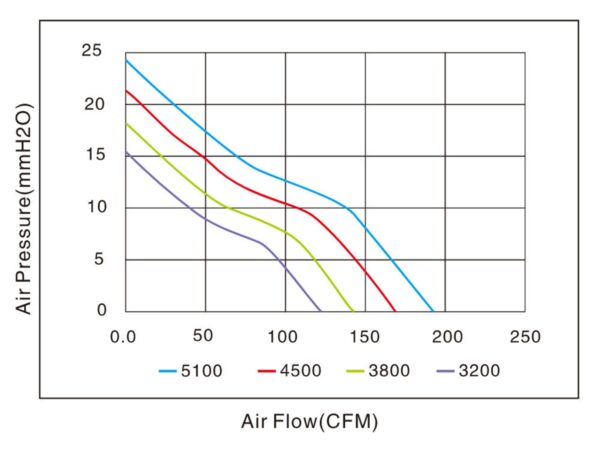

P&Q Curve(At rated voltage)
Technical Parameters
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Input Power | Rated Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | A | Watt | RPM | CFM | m³/min | mmH₂O | inchH₂O | dBA | g | ||
| X12038D12UB | Ball | 12 | 7.0~13.8 | 2 | 24 | 5100 | 191.79 | 5.45 | 24.44 | 0.97 | 61 | 255 |
| X12038D12HB | Ball | 12 | 7.0~13.8 | 1.5 | 18 | 4500 | 168.24 | 4.78 | 21.44 | 0.85 | 54 | 255 |
| X12038D12MB | Ball | 12 | 7.0~13.8 | 0.8 | 9.6 | 3800 | 143 | 4.06 | 18.22 | 0.72 | 49 | 255 |
| X12038D12LB | Ball | 12 | 7.0~13.8 | 0.6 | 7.2 | 3200 | 121.55 | 3.45 | 15.49 | 0.61 | 43 | 255 |
| X12038D24UB | Ball | 24 | 14.0~27.6 | 1 | 24 | 5100 | 191.79 | 5.45 | 24.44 | 0.97 | 61 | 255 |
| X12038D24HB | Ball | 24 | 14.0~27.6 | 0.8 | 19.2 | 4500 | 168.24 | 4.78 | 21.44 | 0.85 | 54 | 255 |
| X12038D24MB | Ball | 24 | 14.0~27.6 | 0.6 | 14.4 | 3800 | 143 | 4.06 | 18.22 | 0.72 | 49 | 255 |
| X12038D24LB | Ball | 24 | 14.0~27.6 | 0.4 | 9.6 | 3200 | 121.55 | 3.45 | 15.49 | 0.61 | 43 | 255 |
| X12038D48UB | Ball | 48 | 28.0~56.0 | 0.6 | 28.8 | 5100 | 191.79 | 5.45 | 24.44 | 0.97 | 61 | 255 |
| X12038D48HB | Ball | 48 | 28.0~56.0 | 0.4 | 19.2 | 4500 | 168.24 | 4.78 | 21.44 | 0.85 | 54 | 255 |
| X12038D48MB | Ball | 48 | 28.0~56.0 | 0.3 | 14.4 | 3800 | 143 | 4.06 | 18.22 | 0.72 | 49 | 255 |
| X12038D48LB | Ball | 48 | 28.0~56.0 | 0.2 | 9.6 | 3200 | 121.55 | 3.45 | 15.49 | 0.61 | 43 | 255 |
Notes:
All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
