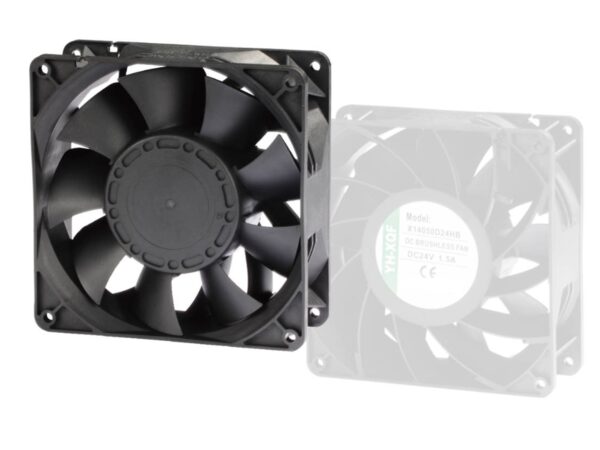

DC Fan
14050
, 140x140x50mm

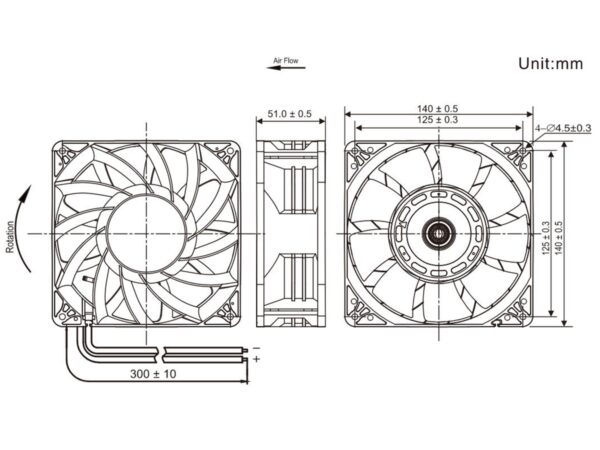

Dimensions Drawing
Request a Cooling Fan Quote
General Specification
Frame: Thermal Plastic, UL 94V-0
Impeller: ThermalPlastic, UL 94V-0
Lead Wires: UL Type （+） Red，（-）Black
Operation Temperature: -10℃~70℃, 35%~85%RH
Storage Temperature: -40℃~80℃, 35%~85%RH
Motor Protection: Impedance Protected, Reverse Polarity Protected
Function Description
Working Principle
Advantages
Function Description
Working Principle
Advantages
Function Description
Working Principle
Advantages
Function Description
Rating Criteria
Functions and Advantages

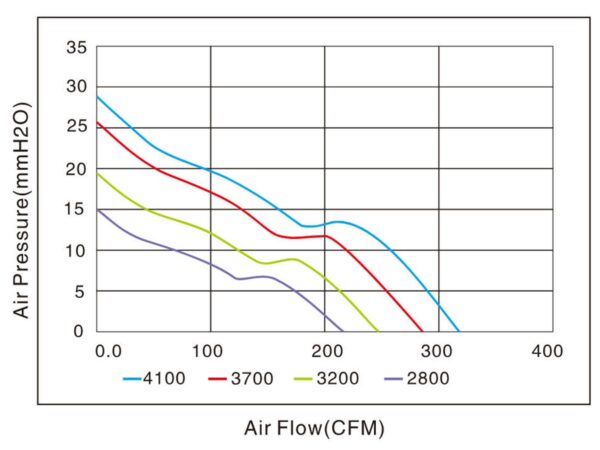

P&Q Curve(At rated voltage)
Technical Parameters
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Input Power | Rated Speed | Max Air Flow | Max Static Pressure | Noise Level | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VDC | VDC | A | Watt | RPM | CFM | m³/min | mmH₂O | inchH₂O | dBA | g | ||
| X14050D12UB | Ball | 12 | 7.0~13.8 | 4.5 | 54 | 4000 | 320.11 | 9.09 | 29.02 | 1.15 | 69 | 500 |
| X14050D12HB | Ball | 12 | 7.0~13.8 | 3 | 36 | 3700 | 288.39 | 8.24 | 26.14 | 1.05 | 64 | 500 |
| X14050D12MB | Ball | 12 | 7.0~13.8 | 2.2 | 26.4 | 3200 | 249.46 | 7.07 | 19.56 | 0.78 | 60 | 500 |
| X14050D12LB | Ball | 12 | 7.0~13.8 | 1.6 | 19.2 | 2800 | 218.25 | 6.18 | 14.9 | 0.61 | 56 | 500 |
| X14050D24UB | Ball | 24 | 14.0~27.6 | 2.5 | 60 | 4000 | 320.11 | 9.09 | 29.02 | 1.15 | 69 | 500 |
| X14050D24HB | Ball | 24 | 14.0~27.6 | 1.5 | 36 | 3700 | 288.39 | 8.24 | 26.14 | 1.05 | 64 | 500 |
| X14050D24MB | Ball | 24 | 14.0~27.6 | 1.1 | 26.4 | 3200 | 249.46 | 7.07 | 19.56 | 0.78 | 60 | 500 |
| X14050D24LB | Ball | 24 | 14.0~27.6 | 0.8 | 19.2 | 2800 | 218.25 | 6.18 | 14.9 | 0.61 | 56 | 500 |
| X14050D48UB | Ball | 48 | 28.0~56.0 | 1.3 | 62.4 | 4000 | 320.11 | 9.09 | 29.02 | 1.15 | 69 | 500 |
| X14050D48HB | Ball | 48 | 28.0~56.0 | 0.75 | 36 | 3700 | 288.39 | 8.24 | 26.14 | 1.05 | 64 | 500 |
| X14050D48MB | Ball | 48 | 28.0~56.0 | 0.55 | 26.4 | 3200 | 249.46 | 7.07 | 19.56 | 0.78 | 60 | 500 |
| X14050D48LB | Ball | 48 | 28.0~56.0 | 0.4 | 19.2 | 2800 | 218.25 | 6.18 | 14.9 | 0.61 | 56 | 500 |
Notes:
All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
