17251(3 leaves)

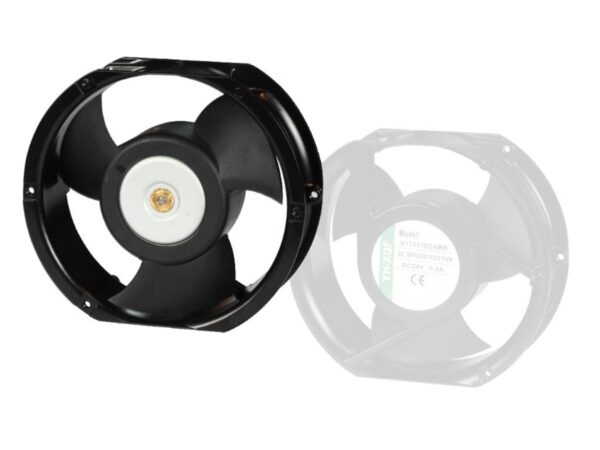

DC Fan

17251 (3 leaves)
, 172x152x51mm

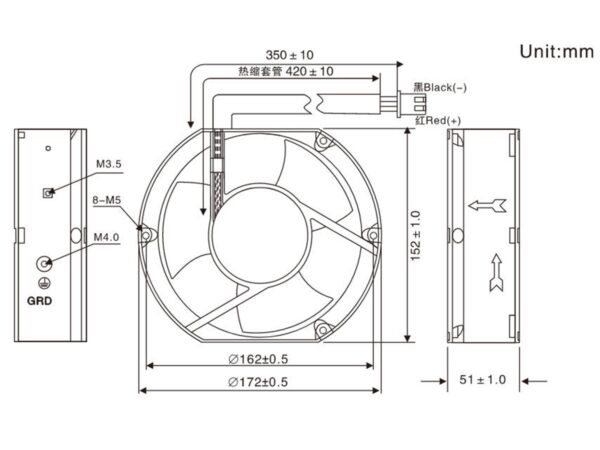

Dimensions Drawing
General Specification

Frame: Thermal Plastic, UL 94V-0
Impeller: ThermalPlastic, UL 94V-0
Lead Wires: UL Type (+) Red,(-)Black
Operation Temperature: -10℃~70℃, 35%~85%RH
Storage Temperature: -40℃~80℃, 35%~85%RH
Motor Protection: Impedance Protected, Reverse Polarity Protected

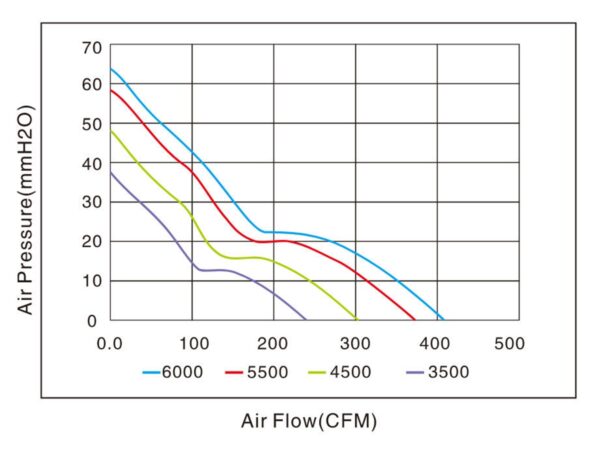

P&Q Curve(At rated voltage)
Technical Parameters
Listed ModelBearing SystemRated VoltageOperation VoltageRated CurrentInput PowerRated SpeedMax Air FlowMax Static PressureNoise LevelWeight
VDCVDCAWattRPMCFMm³/minmmH₂OinchH₂OdBAg
X17251D12UBBall127.0~13.87846000410.2711.6564.012.5372605
X17251D12HBBall127.0~13.86725500305.568.6858.582.3267605
X17251D12MBBall127.0~13.84484500275.447.8247.681.8959605
X17251D12LBBall127.0~13.82243500241.236.8537.641.4950605
X17251D24UBBall2414.0~27.63.5846000410.2711.6564.012.5372605
X17251D24HBBall2414.0~27.62.764.85500305.568.6858.582.3267605
X17251D24MBBall2414.0~27.62484500275.447.8247.681.8959605
X17251D24LBBall2414.0~27.60.921.63500241.236.8537.641.4950605
X17251D48UBBall4828.0~56.01.886.46000410.2711.6564.012.5372605
X17251D48HBBall4828.0~56.015725500305.568.6858.582.3267605
X17251D48MBBall4828.0~56.01484500275.447.8247.681.8959605
X17251D48LBBall4828.0~56.00.5243500241.236.8537.641.4950605

Notes:

All readings are typical values at rated voltage. Specifications subjected to change without prior notice. If you need to speed or voltage function not on the list, Please contact us.
